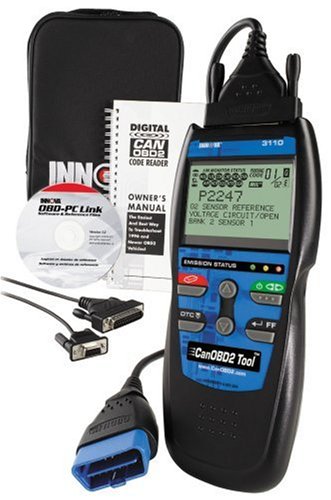

Equus 3110 Innova Diagnostic Code Scanner with Freeze Frame Data for OBDII (Post-1996) Vehicles

A large display makes it easy to see what your car is trying to tell you.

Easily diagnose your vehicle's trouble codes. See product details.

The tool features a unique, patented all-in-one screen display and an LED display for quick emissions status checks. Meanwhile, the 3110's automatic refresh updates data every 30 seconds when connected to the vehicle, offering an easy way to verify repair completion. The device easily retrieves OBD II Diagnostic Trouble Codes (DTCs), including generic codes (P0, P2, P3, and U0) and manufacturer specific codes (P1, P3, and U1). The 3110 communicates with all OBD II protocols, including CAN (Controller Area Network), ISO 9141, J1850PWM, J1850VPW, and KWP 2000 ISO 14230-4.

Adding to the 3110's ease of use, the display offers on-screen code definitions and you can view freeze frame data, which provides a "snapshot" of the vehicle's operating conditions at the time of the fault. The 3110's menu system allows you to set the interface to display trouble codes and definitions in English, Spanish, and French. An internal battery stores the latest test results for later review and analysis, and to accommodate future vehicles, the tool is fully upgradeable via a standard Windows-based PC. Equus' OBD-PC Link software is included with the tool, making upgrades a snap.

Manufacturer Warranty
One-year limited warranty.

COMPARE FEATURES & FUNCTIONS	3030	3100	3120	3130	3140
Tool Coverage
1996 to Present (OBD2 Certified) Vehicle Coverage
Protocol: Keyword 2000, ISO 9141, J-1850 (VPW & PWM)
New ISO 15765 / C.A.N. Protocol
Tool Features
Patented All-In-One Display, 20+ Info. on One Screen
All Hot Keys for Intuitive Navigation - Plug -n-Play
Color-Coded LEDs Verify State OBD Emissions Test Readiness
Internet Updateable
Battery Backup for Off-Vehicle Review
On Screen Definitions in English, Spanish & French
Optional Online RepairSolutions at CanOBD2.com
OBD2 Features (1996 to Present)
Retrieves Generic & Manufacturer Specific Codes
Erase Button Turns Off "Check Engine" Light
Store & Display Freeze Frame Data
OEM Enhanced & Transmission Codes
Enhanced SAE Diagnostics (J1979 & J2190)
View and Record Enhanced OBD2 (1996 and above) Live Data
OBD1 Features (1982 to 1995)
OBD1 Domestic Coverage: Ford (+ Self Tests), GM, Chrysler (82-95)
OBD1 Import Coverage: Toyota / Lexus (89-95)
Color-Coded Cable Heads
Bonus Features
English, Spanish, French Software & Instructions
Custom PC Software to Generate Reports & Update Tool
Mode 6 - 02 Sensor Testing / Mode 9 - VIN Identification

Product Description
Save time and money - know whats wrong before servicing your vehicle. Access the same diagnostic information as larger scan tools - for less! Turn off CHECK ENGINE warning lamp, clear codes and reset monitor status. Perform drive cycles without an assistant - automatically re-links every 15 seconds. Prevent future costly repairs and maintain engine performance with routine inspections. Inspect a used vehicle before buying or selling. Features and Benefits: Retrieves OBD2 DTCs: Generic Codes (P0, P2, P3, and U0), Manufacturer Specific Codes (P1, P3, and U1) - Included Communication Protocols: C.A.N. (Controller Area Network), ISO 9141, J1850PWM, J1850VPW, KWP 2000 ISO 14230-4 - LCD Specification: Custom Graphic LCD Display Line x Character = 7 x 22 / Maximum 154 Characters, LCD Size - 2.36" x 1.57" (60 x 40 mm) - Emission Related DTCs - Displayed on Single Screen: DTCs (Generic Codes P0, P2, P3, U0), Manufacturer Specific Codes (P1, P3, and U1), Identifies and Displays Pending Codes, MIL (Check Engine) Light Status, Code sequencing by importance. Code 01 commands the MIL on and stored Freeze Frame data, Total # of Codes Retrieved, Monitor Status, OBD I/M Readiness Status - Complete / All-in-One Display - Easy / Plug-n-Play User Interface - Lightning fast connection retrieves diagnostic data in 10 to 15 seconds! - Includes CAN Protocol - Code Definition Displayed on Unit - Includes Spanish Interface and Definitions (selected by a menu command) - OBD I/M Readiness LED Indicators - Displays Freeze Frame Data - Detachable and replaceable 14-Pin OBD2 / CAN Cable - Memory / Battery backup for off-car review and analysis - Unit can be flash updated with a standard Windows PC - OBD-PC Link Software provides detailed test results, prints customized reports and much more. - Package includes 3110 Tool, Soft Nylon Case, OBD-PC Link Software CD, Serial PC Cable, 3 AA batteries, OBD2 (DLC) Cable and Instruction Manual - For further details, please visit canobd2.com.
