Actron CP9190 Elite AutoScanner Pro Diagnostic Code Scanner with Live, Record, Playback and Graphing Data Capability for OBDI and OBDII (Post-1996) Vehicles

The Actron CP9190 easily scans and retrieves DTCs. View larger.

TrueLink Technology assures a fast and accurate diagnostic output.

The Elite AutoScanner comes loaded with cables and a hard case. View larger.

The CP9190 is simple and easy to use. The included OBD I/II cables provide both data and power connections, while the USB cable offers a quick and easy way to connect your scanner to your PC. In addition to connecting to the computer for Internet updates, you'll also appreciate the CP9190's USB connectivity because it makes printing DTCs and other information a breeze. Once the scanner is connected to your vehicle, the user friendly menu provides a variety of information in a snap. This device displays OBD II enhanced functionality with graph data (1996 and newer), O2 monitor tests, state emissions, and even reads, records and displays live sensor data so you know what's happening with your vehicle as you make adjustments. Other features include an OBD II code library built right into the tool, an OBD II drive cycle mode, battery power so you can review diagnostic data even when the scanner is disconnected from your vehicle, and a trilingual (English, Spanish, French) mode.

Another important thing to remember is that all emission testing facilities will fail a vehicle that has the "check engine" light illuminated at the time of the test -- even if it is only lit to remind you of a past-due oil change or 60,000-mile tune-up. With this scanner, you can shut off the check engine light and pass the emissions test on your terms. The menu also alerts you of any pending DTCs and reads the Malfunction Indicator Lamp (MIL) status. By reading the MIL status the scanner gives insight into what might cause your "check engine" light to turn on in the near future. In this way, the scanner also provides some preventive measures to help you keep a close eye on your vehicle's systems. These functions, combined with the simple keypad used to read, erase, and navigate DTCs, make the CP9180 scanner a perfect solution for identifying problems with your vehicle and keeping you safe on the road.

What's in the Box

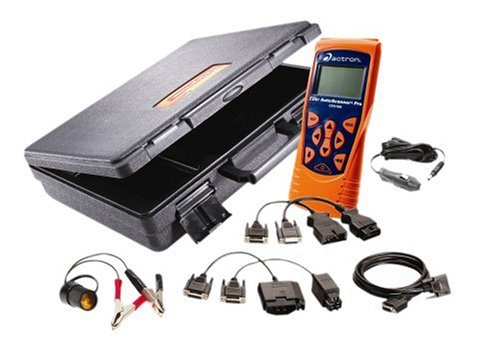

Actron CP9190 OBD II/I Elite AutoScanner Pro diagnostic code scanner, OBD II cable, GM OBD I ALDL cable, Ford OBD I MCU/EEC- IV cable, Chrysler OBD I SCI cable, USB cable, 8-foot extension cable, cigarette lighter adapter, blow molded hard case, manual, professional companion CD, batteries, and registration card.

HARDWARE FEATURES	CP9125	CP9410	CP9175	CP9180	CP9185	CP9190
Detachable cable
Back lit display
USB cable included for online update
Soft carrying case
Blow molded storage case
SOFTWARE FEATURES	CP9125	CP9410	CP9175	CP9180	CP9185	CP9190
Updateable online
On-screen code definitions
Battery low indicator
Review data off vehicle
Code lookup on tool
Record and playback live sensor data
Print data
Display graphing data
Urgency Indicators
OBD II ENHANCED	CP9125	CP9410	CP9175	CP9180	CP9185	CP9190
1996 and newer GM, Ford and Chrysler enhanced DTCs
OBD II GENERIC	CP9125	CP9410	CP9175	CP9180	CP9185	CP9190
Read codes, pending codes and erase codes
MIL status (malfunction indicator lamp)
I/M readiness monitor status (emissions)
View freeze frame data (engine parameters at time of default
State OBD check
Displays vehicle information (VIN # and calibration ID)
View live engine data parameters (PIDS)
O2 monitor test
OBD II drive cycle mode
Manufacturer specific diagnostic trouble codes
PROTOCOLS	CP9125	CP9410	CP9175	CP9180	CP9185	CP9190
CAN (all 2008 vehicles are required to use this protocol)
Keyword 2000, ISO-9142-2, J-1850 (VPW & PWM)
OBD I CABLES	CP9125	CP9410	CP9175	CP9180	CP9185	CP9190
OBD I cables for `84-'95 GM, Ford & `89-'95 Chrysler vehicles

indicates a feature available with purchase of optional cable(s).
